Inline Cleaners




Click on images to enlarge.
 Description & Images

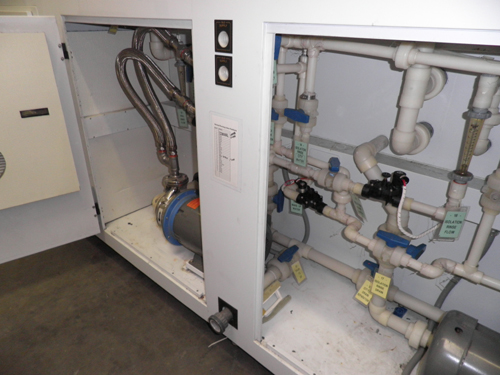

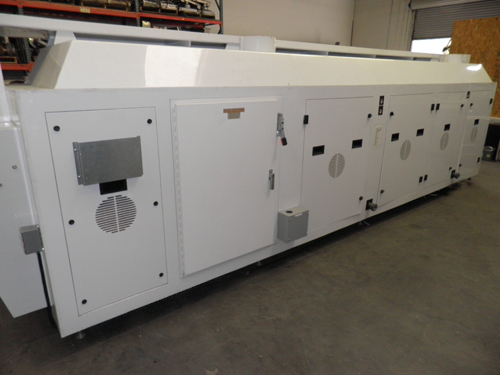

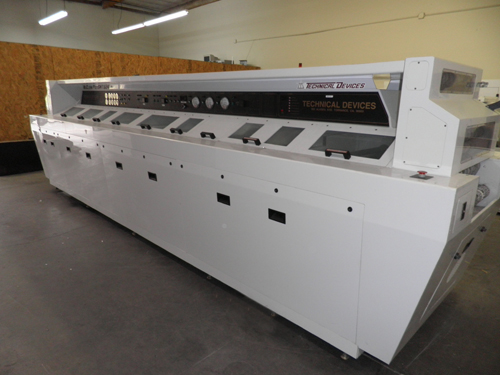

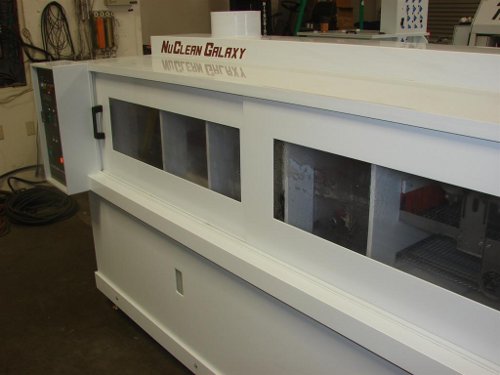

2000 Technical Devices Nu/Clean 624 PolySMT

Machine configured as follows:
- 24” Usable dual belt with 3’ on-load extension.

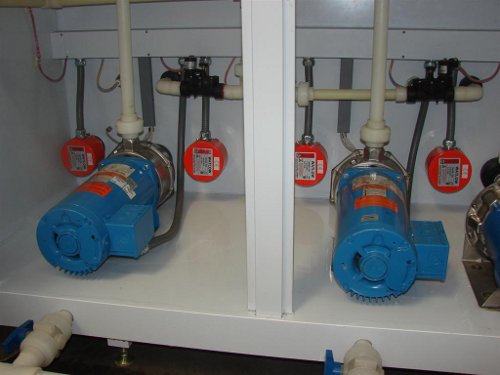

- 2 Upper & 2 Lower Prewash Spray bars supplied from heated 10 HP Wash Pump
- 5 Upper & 5 Lower Wash Spray bars supplied from same 10 HP heated wash pump.
- 1 SST Upper Airknive supplied by 5 hp blower in dry section
- 1 Upper & 1 Lower Spray bar for chemical isolation
- 1 SST Upper & 1 SST Lower Airknive supplied by same 5 hp blower in dry section for chemical isolation
- 3 Upper & 3 Lower spray bars supplied from 10 HP Heated Rinse Pump.
- 1 Upper & 1 Lower Final rinse spray bar supplied from customer’s DI supply.
- 1 SST Upper Airknive supplied by the same 5 hp blower in dry section

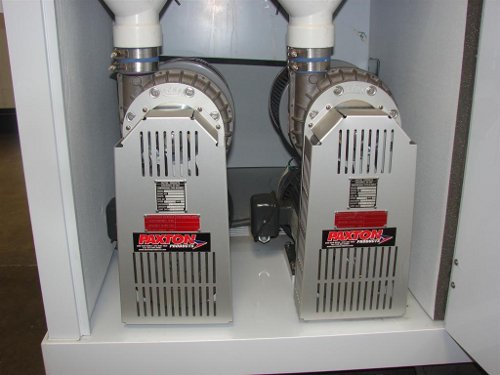

- First dry section is 15 HP Blower with 2 Top & 1 Bottom SST Airknives.
- Second dry section is 15 HP Blower with 2 Top & 1 Bottom SST Airknives.

- 480 volt, 3 phase, 149 amps
- 22'9" ft long with 3 ft extension x 5.5 ft wide

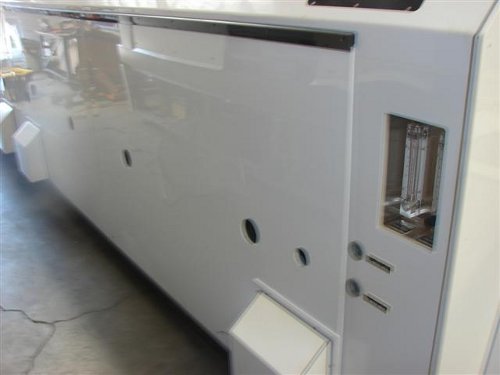

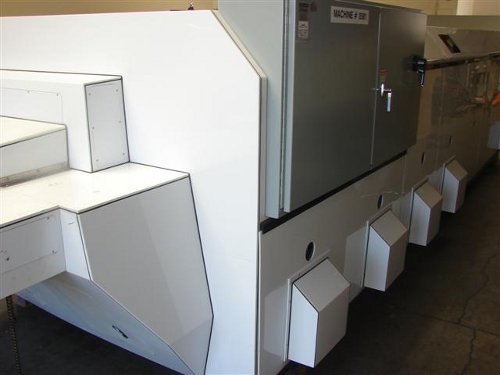

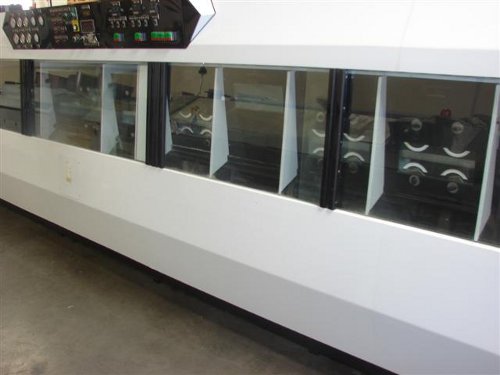

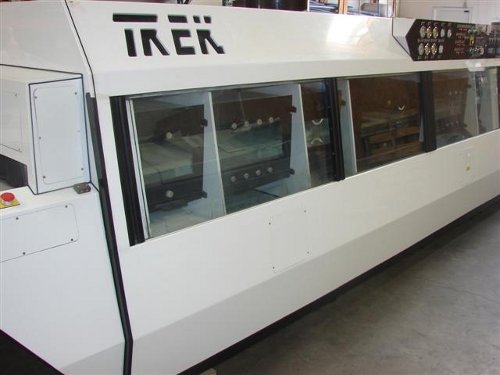

1999 Trek Triton IV MIL SMT

Machine configured as follows:
- Stainless Steel Mesh Belt (30” Usable)
Prewash Section:
- 1 Upper & 1 Lower Prewash Spray bars supplied from heated 15 HP Wash Pump
Wash Section:
- 4 Upper & 4 Lower Wash Spray bars supplied from same 15 HP heated wash pump
Isolation Section:
- 1 SST Upper Airknive and 1 SST lower Airknive supplied by first 15 hp blower in dry section
- Wet Isolation with 1 upper and 1 lower spray bar supplied from 15 HP heated rinse pump
- 1 SST Upper Airknive and 1 SST lower Airknive supplied by first 15 hp blower in dry section
Rinse Section:
- 3 Upper & 3 Lower spray bars supplied from 15 HP Heated Rinse Pump.
Final Rinse:
- 1 Upper & 1 Lower Final rinse spray bar supplied from customer’s DI supply.
First Dry Section:
- 15 HP Turbine blower w/ 2 upper and 1 lower SST Airknives.
Second Dry Section:
- 15 HP Turbine blower w/ 2 upper and 2 lower SST Airknives.
Third Dry Section:> - 15 HP Turbine blower w/ 2 upper and 2 lower SST Airknives.
After Third Dry Section:
- Machine has 1 Upper IR Heater Panel w/ temperature controller

Power: 460 volt, 180 amps, 3 phase.
Machine Dimensions: 23’ long 5’10” wide.

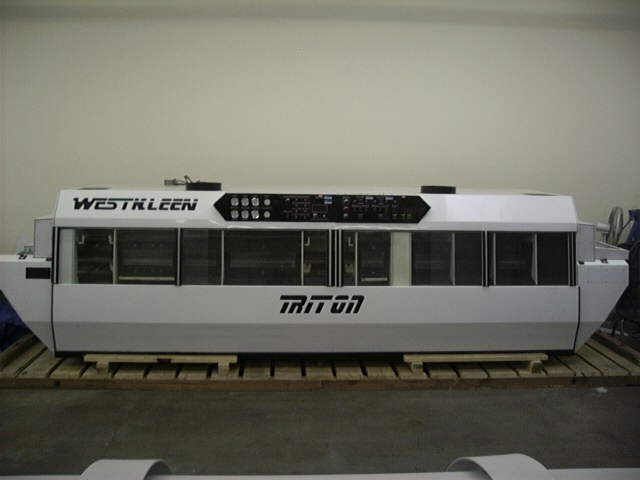

1997 Westklean Triton IV MIL SMT

Machine configured as follows
- Stainless Steel Mesh Belt (18” Usable)
Prewash Section:
- 1 Upper & 1 Lower Prewash Spray bars supplied from heated 15 HP Wash Pump
Wash Section:
- 4 Upper & 4 Lower Wash Spray bars supplied from same 15 HP heated wash pump
Isolation Section:
- 1 SST Upper Airknive and 1 SST lower Airknive supplied by first 15 hp blower in dry section
- Wet Isolation with 1 upper and 1 lower spray bar supplied from 15 HP heated rinse pump
- 1 SST Upper Airknive and 1 SST lower Airknive supplied by first 15 hp blower in dry section
Rinse Section:
- 3 Upper & 3 Lower spray bars supplied from 15 HP Heated Rinse Pump.
Final Rinse:
- 1 Upper & 1 Lower Final rinse spray bar supplied from customer’s DI supply.
First Dry Section:
- 15 HP Turbine blower w/ 2 upper and 1 lower SST Airknives.
Second Dry Section:
- 15 HP Turbine blower w/ 2 upper and 2 lower SST Airknives.

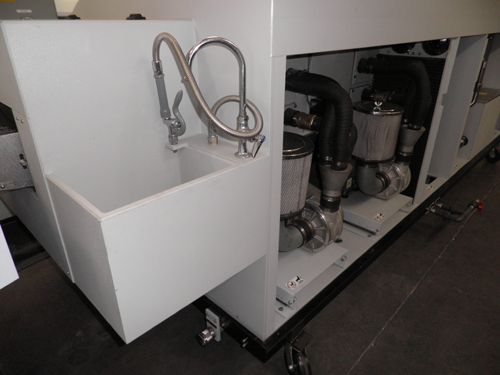

Utility Sink at entrance end.
Power: 460 volt, 185 amps, 3 phase.
Machine Dimensions: 18’11” long 5’5” wide.
